Product Description
Our Patent-Pending Vacuum Part Grabber is the only solution on the market that turns your CNC Machine into an automated loading cell with little to no adjustment. The proprietary Venturi Generator creates up to 12 PSI of vacuum, and is turned on by simply turning on your machine's Through Spindle Air Blast.

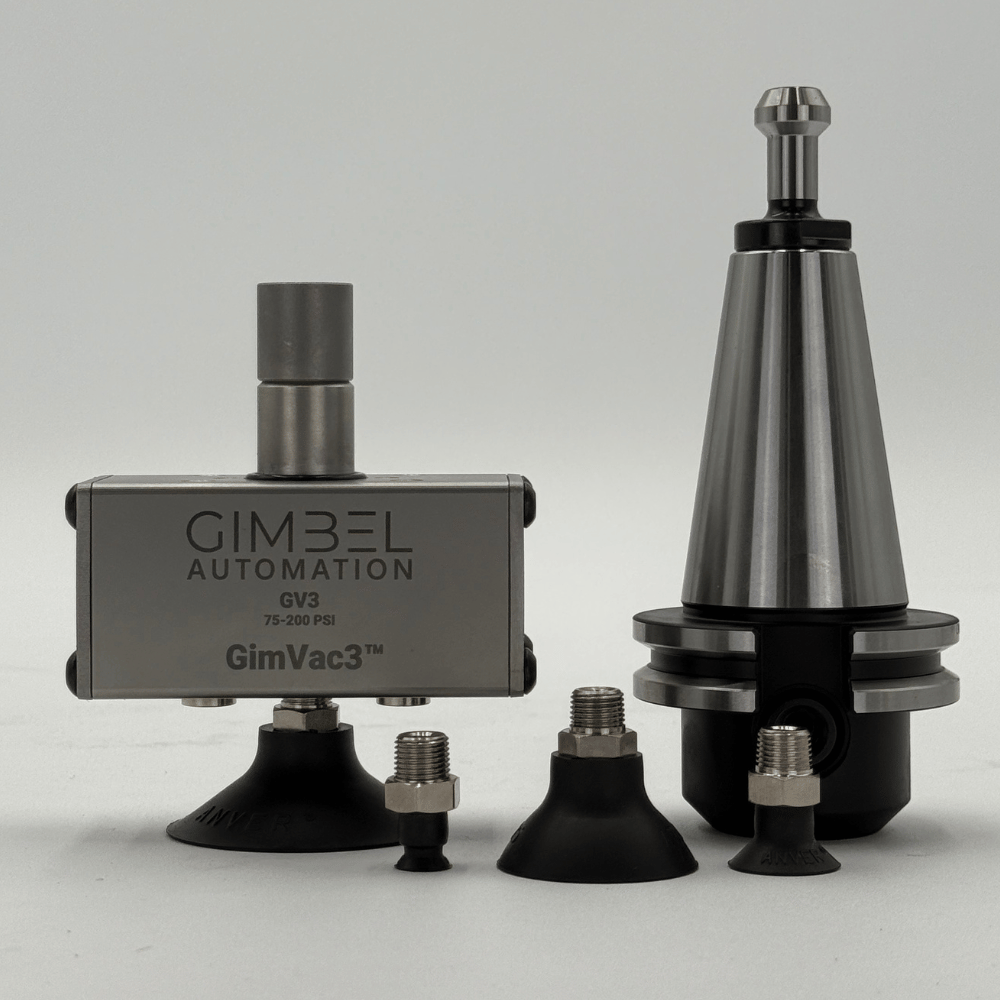

Complete Kit Includes:

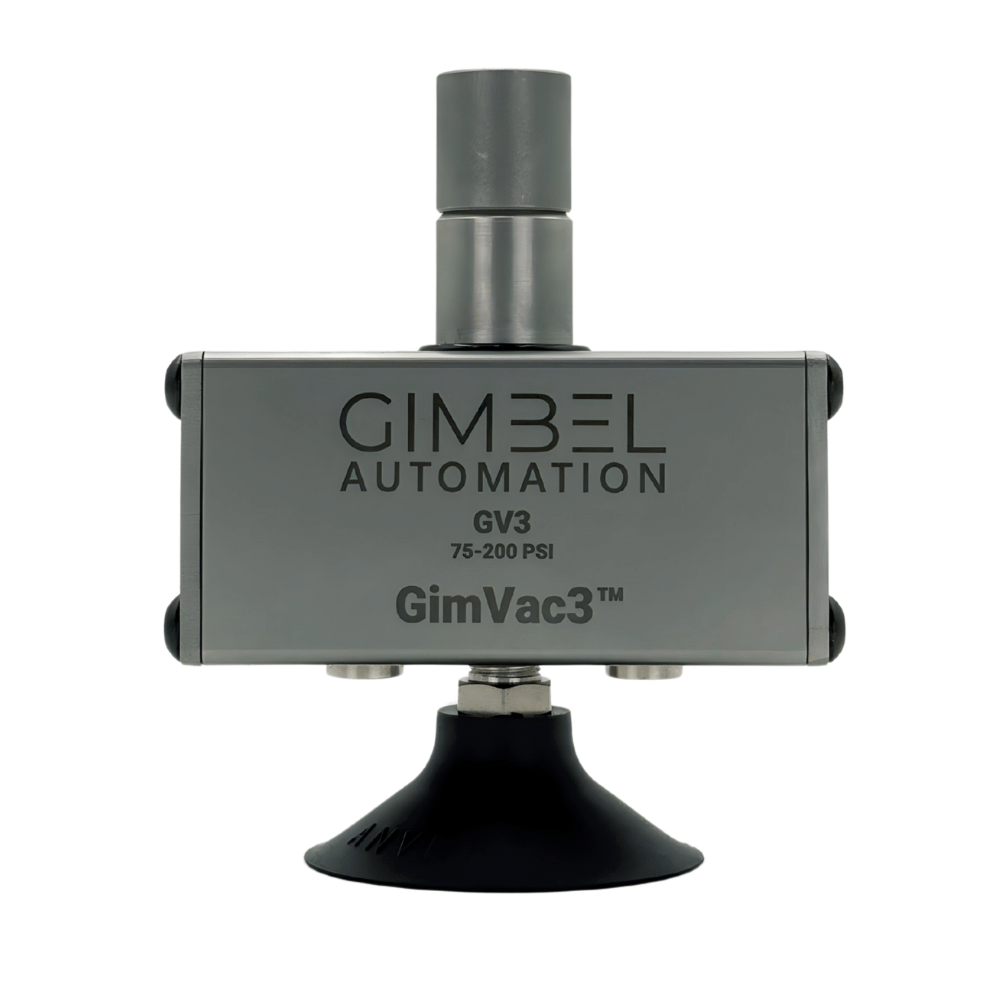

- 1x CNC Vacuum Part Grabber
- 4x Sizes of Suction Cups

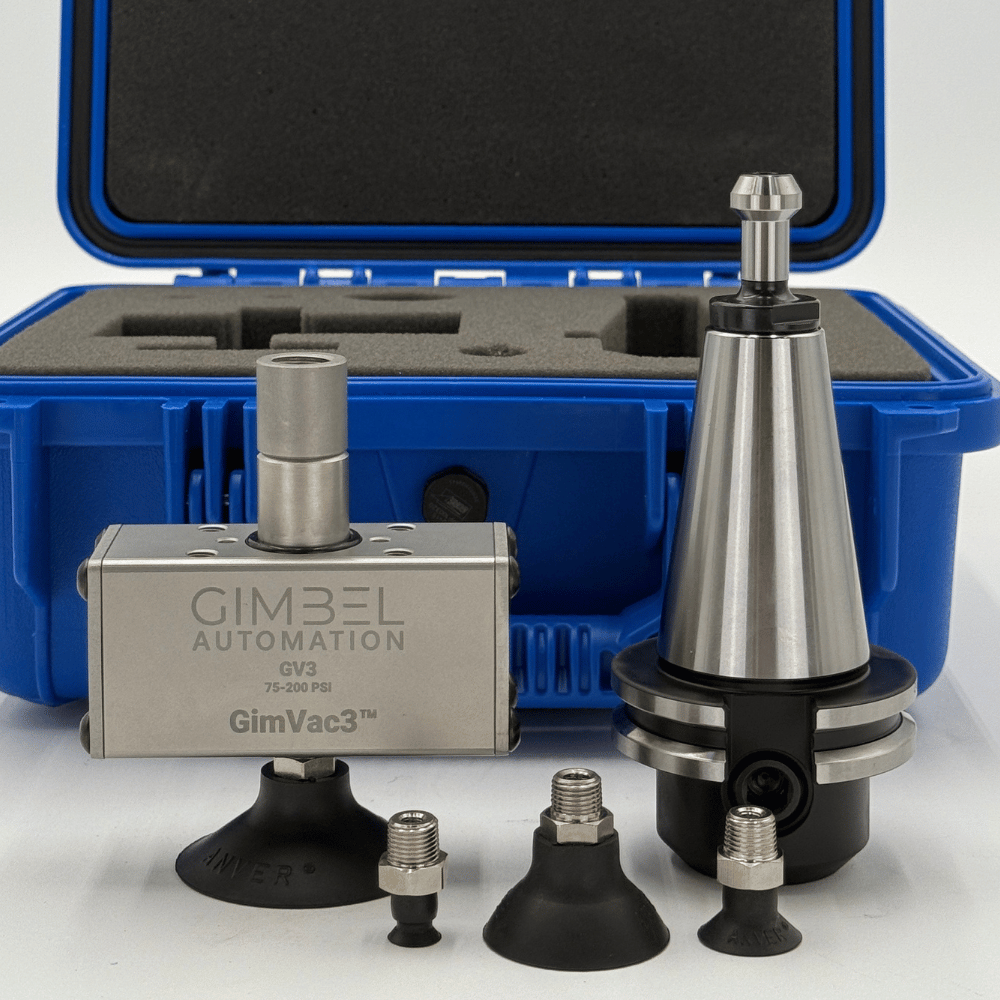

- 1x Hard Pelican Case
- 0.40", 0.79", 1.42", & 2.05" Suctions Cup
- 1x 3/4" MariTool Holder (OPTIONAL)
Technical Specs | |
---|---|
Max Vacuum Achievable |
12 PSI |
Vacuum Port Size | 1/8" NPT |

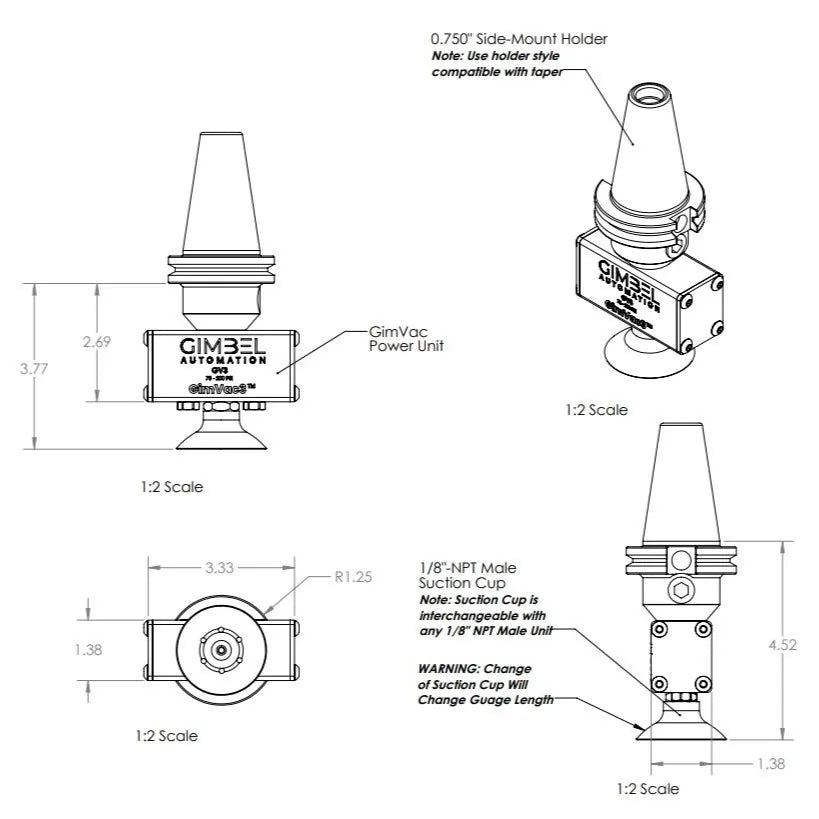

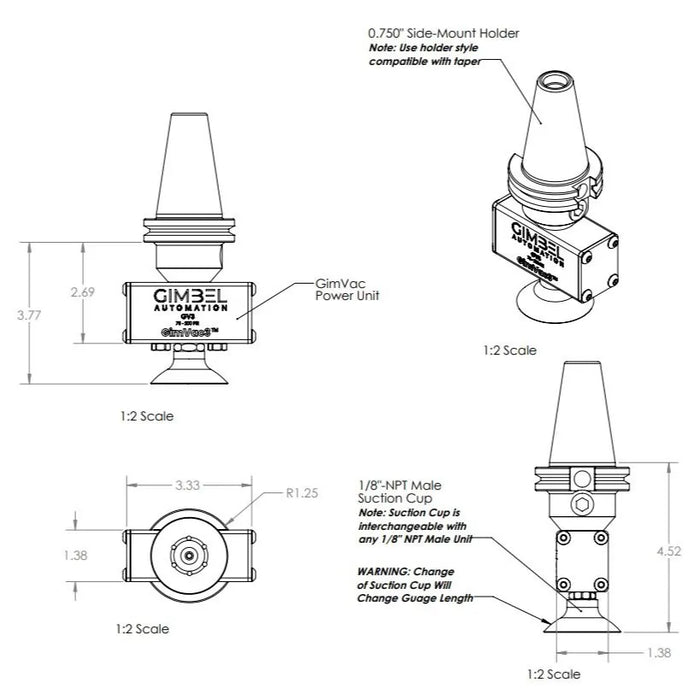

Shank Diameter |
3/4" |
Air Pressure Required |
75-140 PSI |
These are excellent for very tiny or very large parts. Since vacuum is equal to vacuum force across an area, a large suction cup can load and unload very heavy or cumbersome components automatically..
